Test tubes - Nitrogen tubes - Schlenk tubes with straight stopcock, with glass key

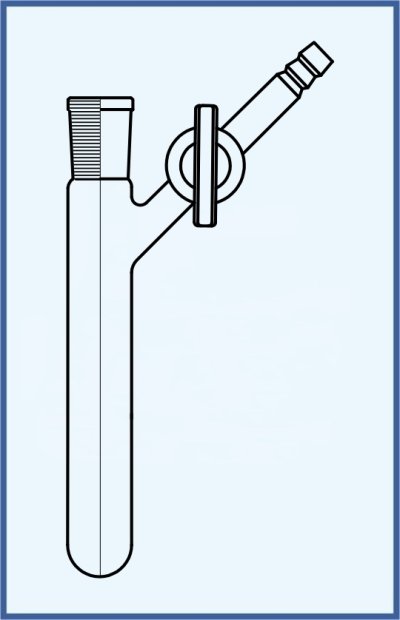

Nitrogen tubes, also known as Schlenk tubes, is a piece of apparatus used

as a reaction vessel in air-sensitive chemistry.



It is made of glass and has a side arm fitted with a PTFE or ground glass stopcock which allows the vessel to be evacuated or filled with gas (e.g. nitrogen or argon).

For production of nitrogen tubes, we use Simax borosilicate glass. We allways check glass quality, dimensions and optical clarity.

Test tubes - Nitrogen tubes - Schlenk tubes with straight stopcock, with glass key
Catalog number –
ISO –
DIN –
Code
 Tube
diameter
(mm)		 Length
(mm)		 SJ
 Drawing Packing
(pcs)
632 450 018 080 18 80 14/23 6115 10
632 450 018 105 18 105 14/23 6115 10
632 450 018 120 18 120 14/23 6115 10
632 450 018 140 18 140 14/23 6115 10
632 450 018 150 18 150 14/23 6115 10
632 450 018 190 18 190 14/23 6115 10
632 450 022 120 22 120 14/23 6116 10
632 450 022 140 22 140 14/23 6116 10
632 451 025 100 26 100 14/23 6117.1 10
632 452 030 120 30 120 14/23 6118 10
632 452 030 150 30 150 14/23 6118 10
632 452 030 170 30 170 14/23 6118 10
632 452 030 221 30 221 14/23 6118 10
632 453 040 130 40 130 14/23 6119 10
632 453 040 145 40 145 14/23 6119 10
632 454 050 150 50 150 29/32 6120 10

Notice:
Borosilicate glass
