Water stills - DP 4000

Water stills, also called laboratory water distillers, heat water to a volatile vapor phase thus separating it from nonvolatile impurities. While the terms deionized and distilled water are often used interchangeably, there are significant differences in the types of impurities that are removed from each.

We offer 2 sizes with capacity 2,3 and 4 litres per hour. We offer also spare parts  – bottom or top part.

For production we use Simax borosilicate glass tubes. We allways check glass quality, dimensions and optical clarity.

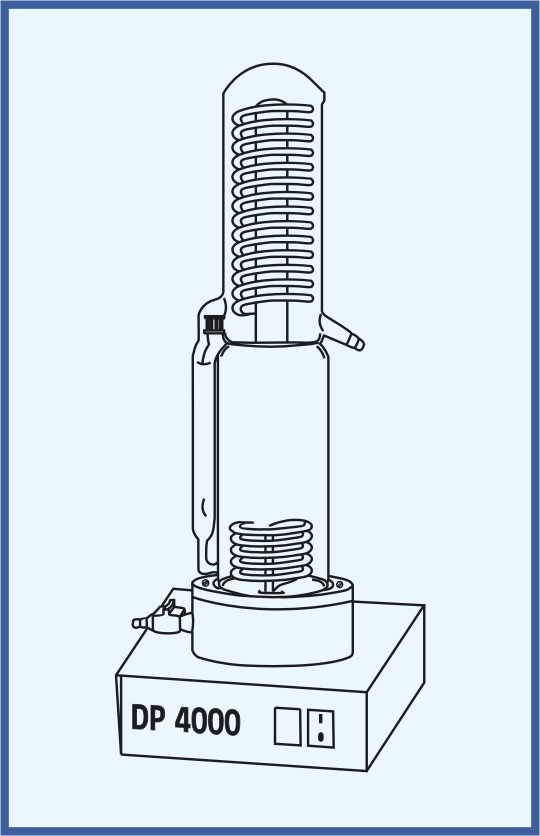

Water stills - DP 4000
Parameters:

Code:   632 445 100 105 DP 4000
Drawing:   2967
Distilled output:   4,0 L/h
Catalog number:   Type: DP 4000
Power consumption:   3 100 W
Water consumption:   45 L / h
Mains Voltage:   230 V / 50 Hz
Rated current:   14 A
Conductivity of dist.:   1,5 - 2,5 μScm-1
Depth:   190 mm
Width:   190 mm
Height:   660 mm
Packing:   1 pcs
Packing for 1 pcs:   1 palette 80x60x100 cm, btto 20 kg
Notice:

Borosilicate glass

Operating video

 Installation  (downloads - 17MB)
 Cleaning-of-Evaporator  (downloads - 15MB)
 Cleaning-of-Cooling-Spiral  (downloads - 14MB)





 DP 4000
